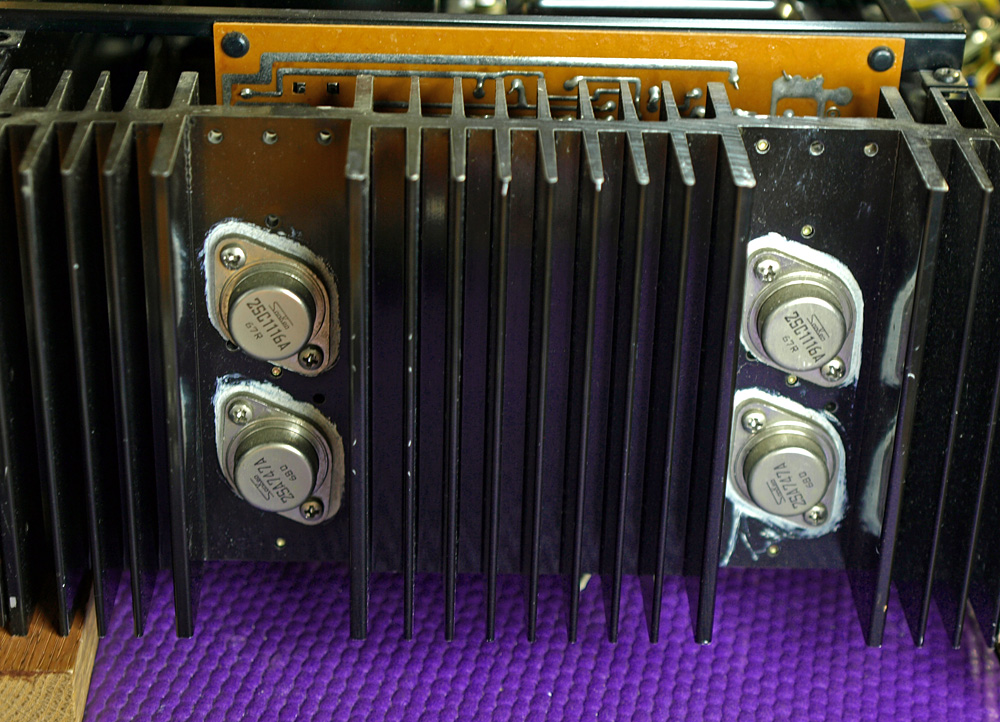

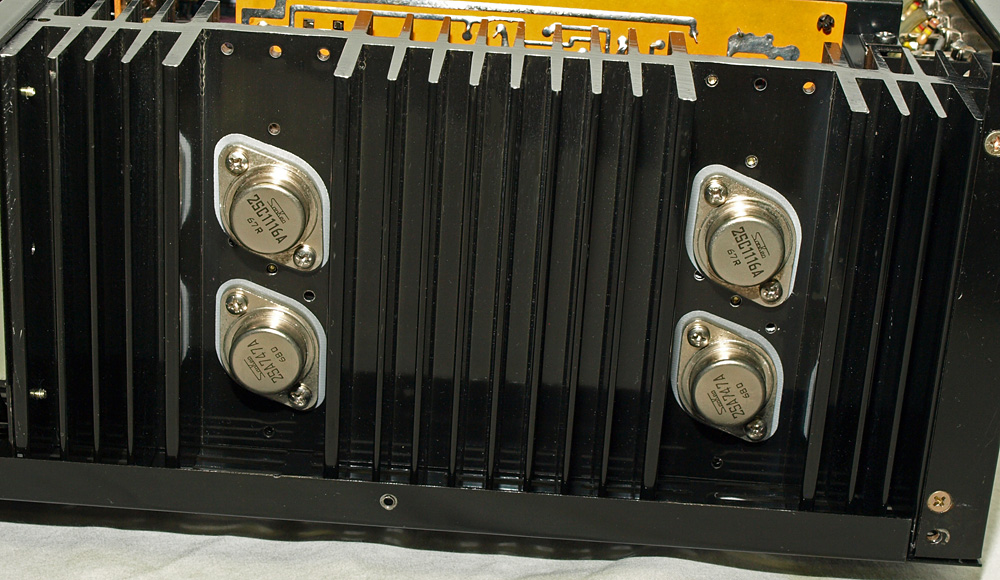

Here is a before and after shot of the heat sink with the output transistors. Sil-Pad insulators were used instead of silicon compound and
mica.
mica.

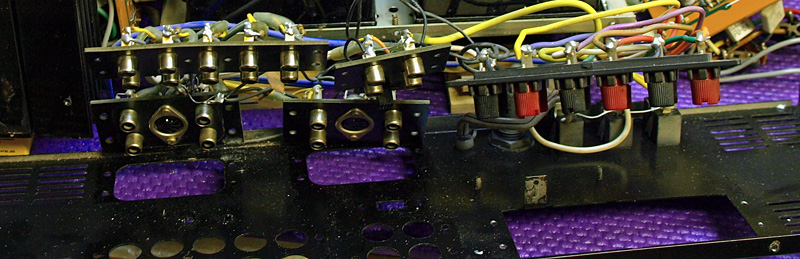

The back panel is worked
over as described in prior
write-ups. Everything is
washed, RCA jacks are
polished and the panel
get a coat of wax. Special
care is given to protect
the paper labels. The
paper labels can take a
little water and mild soap,
but you never want to
"scrub" them. Blot gently
and let air dry.

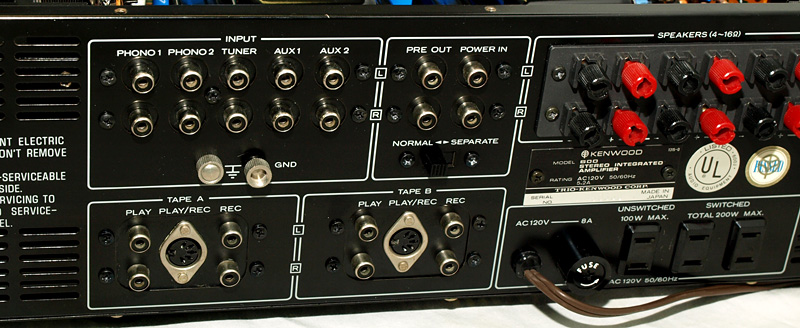

Shines up real nice...
