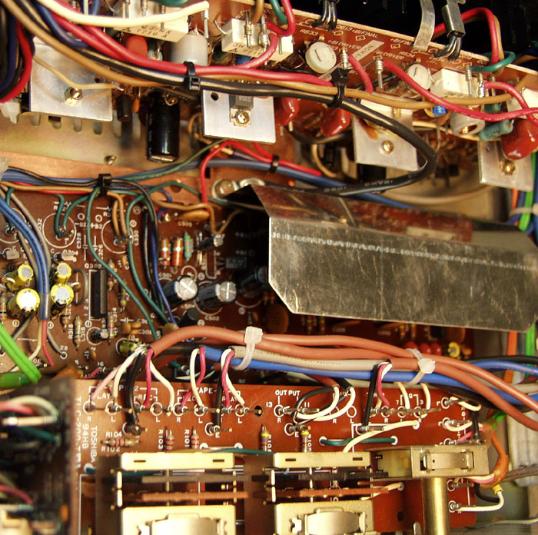

Just some more shots
of the insides...

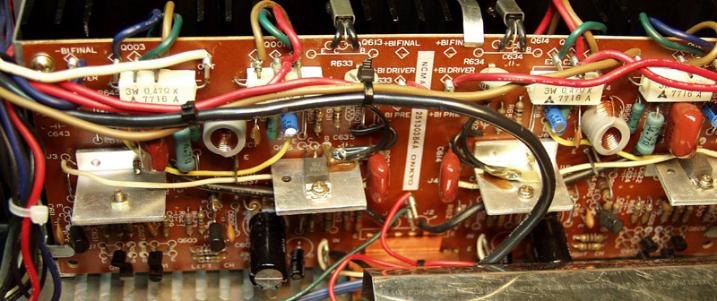

The trimpots on the output
driver board are used to
adjust the bias. It is set at
20mv on each channel.
There is no DC offset
adjustment on this unit.
This is handled through a
NFB circuit. After a 10
minute warm up, DC offset
is between 2.5mv and
10mv. Nice...
of the insides...
The trimpots on the output
driver board are used to
adjust the bias. It is set at
20mv on each channel.
There is no DC offset
adjustment on this unit.
This is handled through a
NFB circuit. After a 10
minute warm up, DC offset
is between 2.5mv and
10mv. Nice...

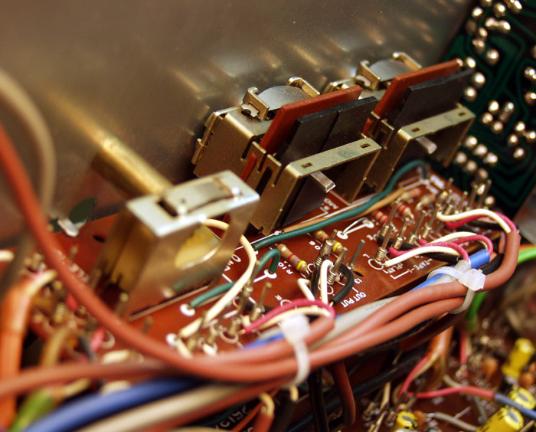

All switches are cleaned
with DeoxIt, and work
smoothly and quietly.
with DeoxIt, and work
smoothly and quietly.
