A perfect fit...

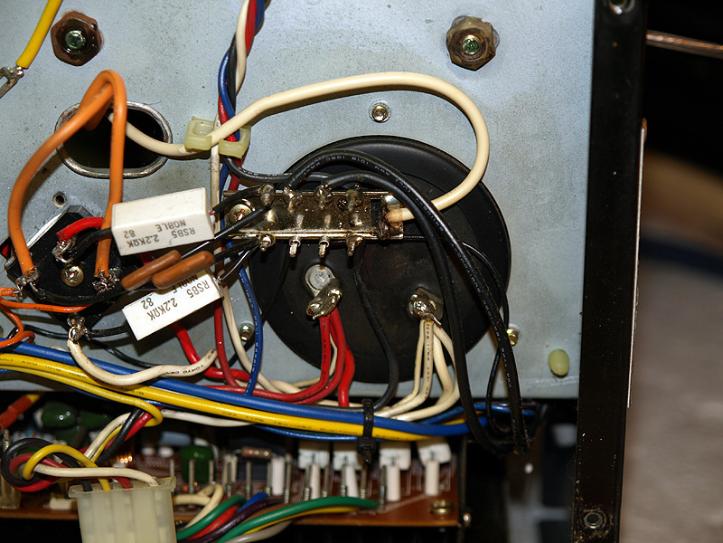

Some before and after pictures...

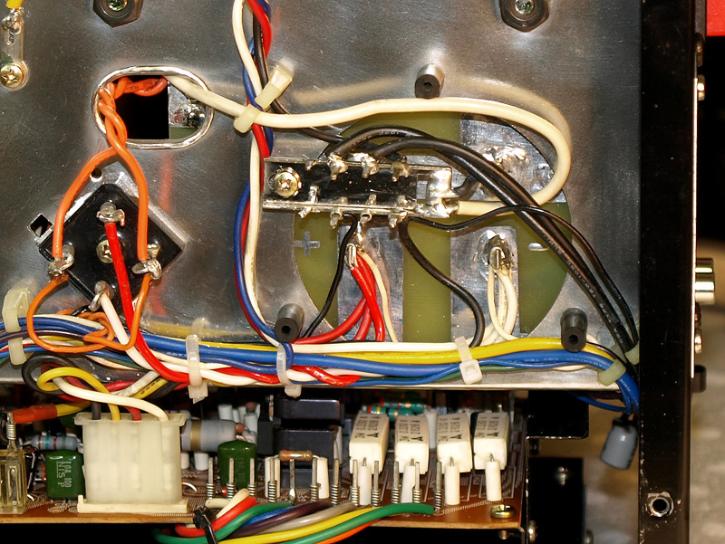

The setup worked perfect. Notice that the caps and resistors running off the rectifier were moved to the top
board. This reduced the clutter on the bottom of the chassis..
These are 15,000uf caps. This is an upgrade to the original 12,000uf size. It is amazing how new supply caps
can improve the sound quality.
The solder joints are large and secure the caps to the board well, but to relieve any stress on the joints and
posts incurred through rough handling (such as in shipping), I mounted them in silicon adhesive.
