Back-end Disassembly
Now we get to the back-end. It's most of the way down here...

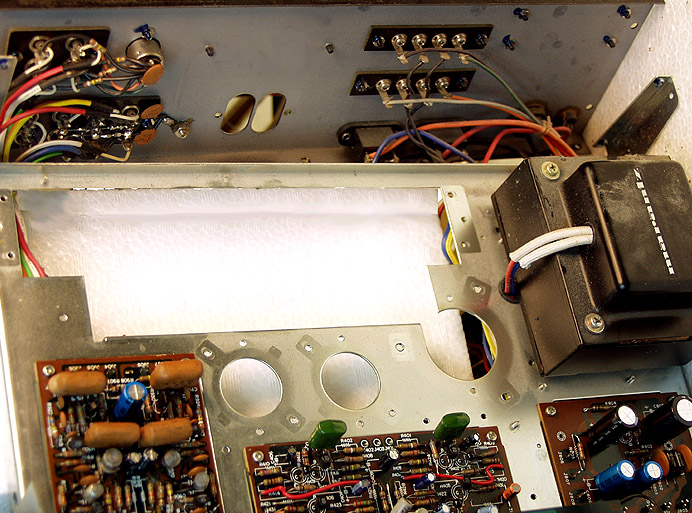

Amp sections...
stripped down and
ready for work.

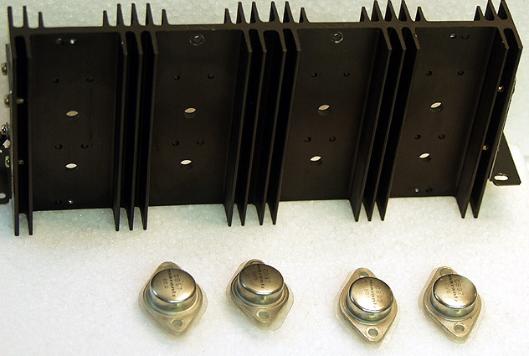

Heat-sync and
trasistors have been
cleaned up here
->

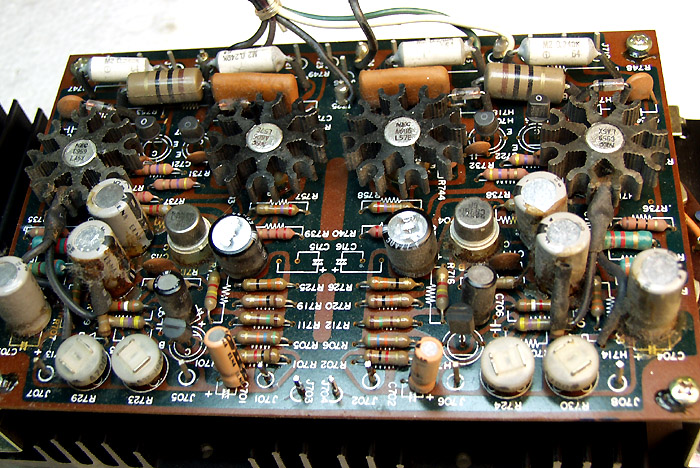

Here is a picture of the amp board prior to work. Minor dust, but lots of old caps and glue... and

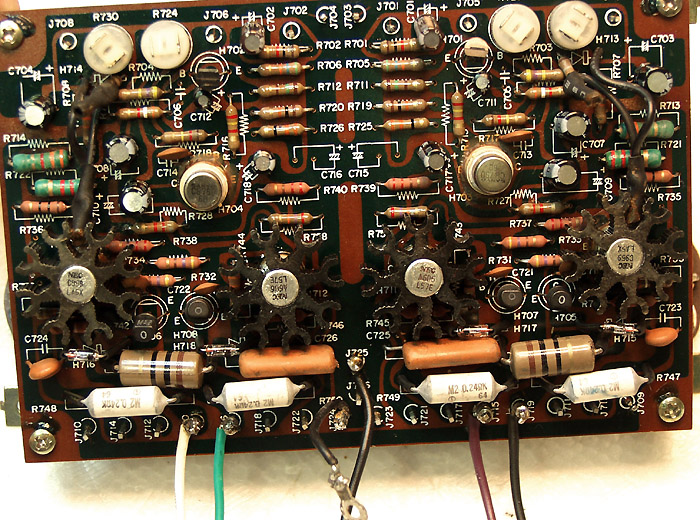

one hidden problem.... In the lower picture, it's all cleaned up, complete with new lead wires. I
replaced the lead wires so I could route them differently... More on that later.
