Testing

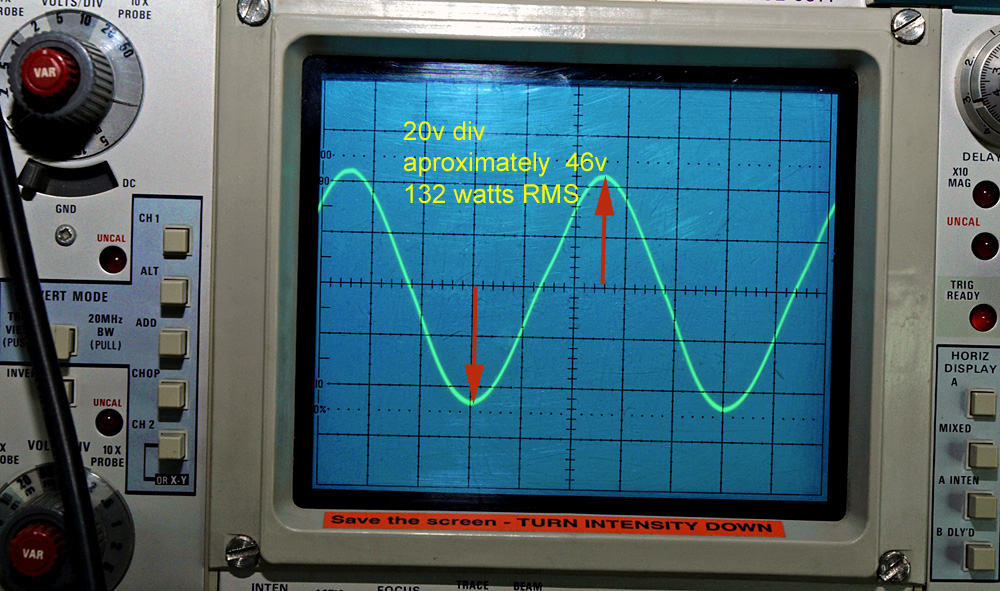

Both channels spec'ed out the same, so I present the left channel image here for observation. I did not have the trace centered precisely so the 1000Khz wave
form is slightly lower. I did not catch this until I viewed the pictures. I have recently purchased a digitizing scope that does math functions... cool!!! So the next
time I run this kind of test it will be precise. Never the less, the amp is producing 46v-47v. That is 132+ watts RMS per channel... not to shabby.
form is slightly lower. I did not catch this until I viewed the pictures. I have recently purchased a digitizing scope that does math functions... cool!!! So the next
time I run this kind of test it will be precise. Never the less, the amp is producing 46v-47v. That is 132+ watts RMS per channel... not to shabby.
